Motivation
This is an useful and often needed utility module. It comes in handy when you need to distribute signals which must be decoupled. The input signal is buffered and decoupled with means of individual operational amplifiers. One input drives 5 individual outputs. The signaling of the PSU rails is optional. I use at least one of this modules in every case to see if something went wrong with the PSU.
Specs and features
- Three buffered multiple 1 in, 5 out
- Optional PSU signaling
- Runs on +/-15V and +/-12V
- Schematic Buffered multiple

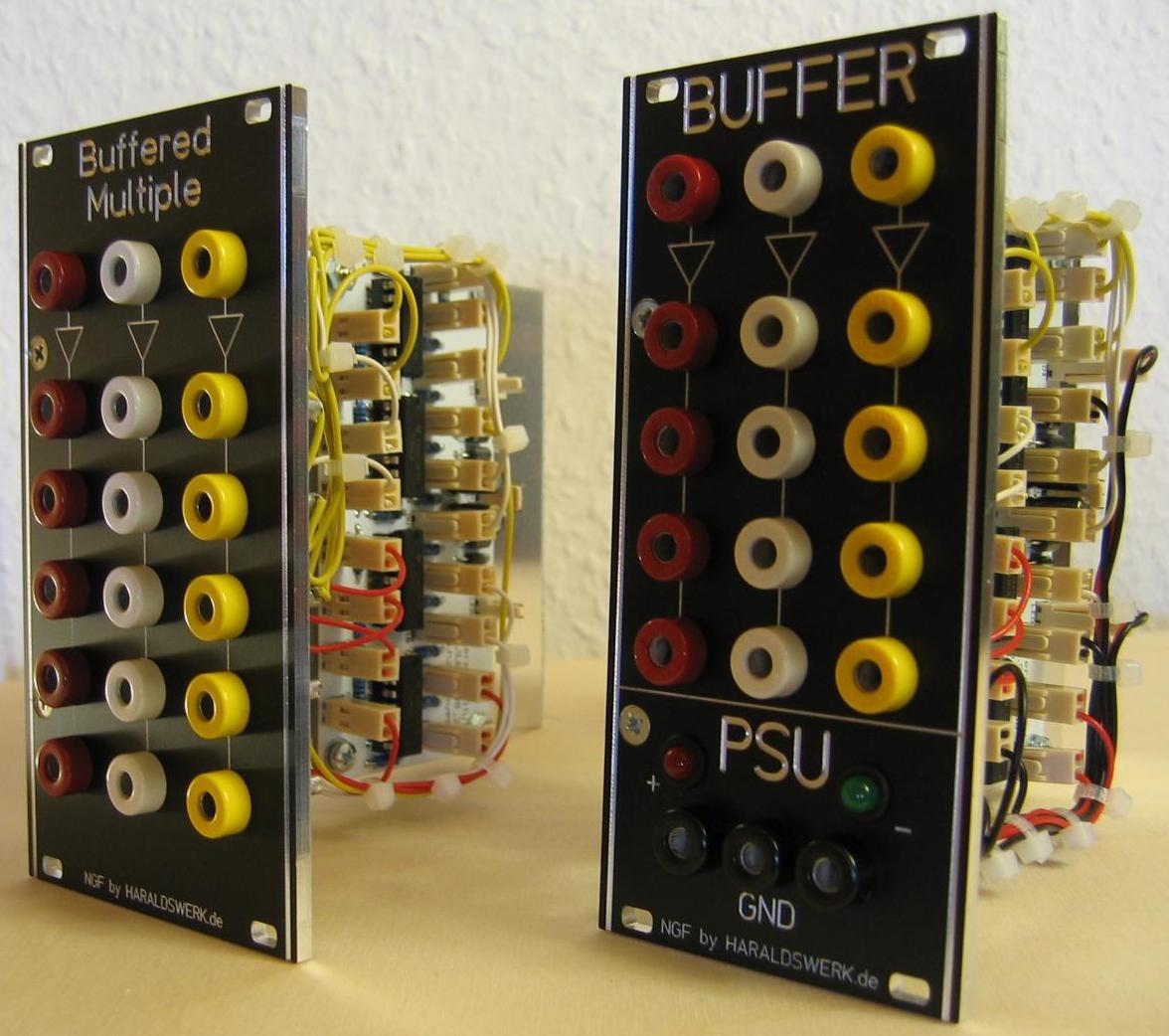

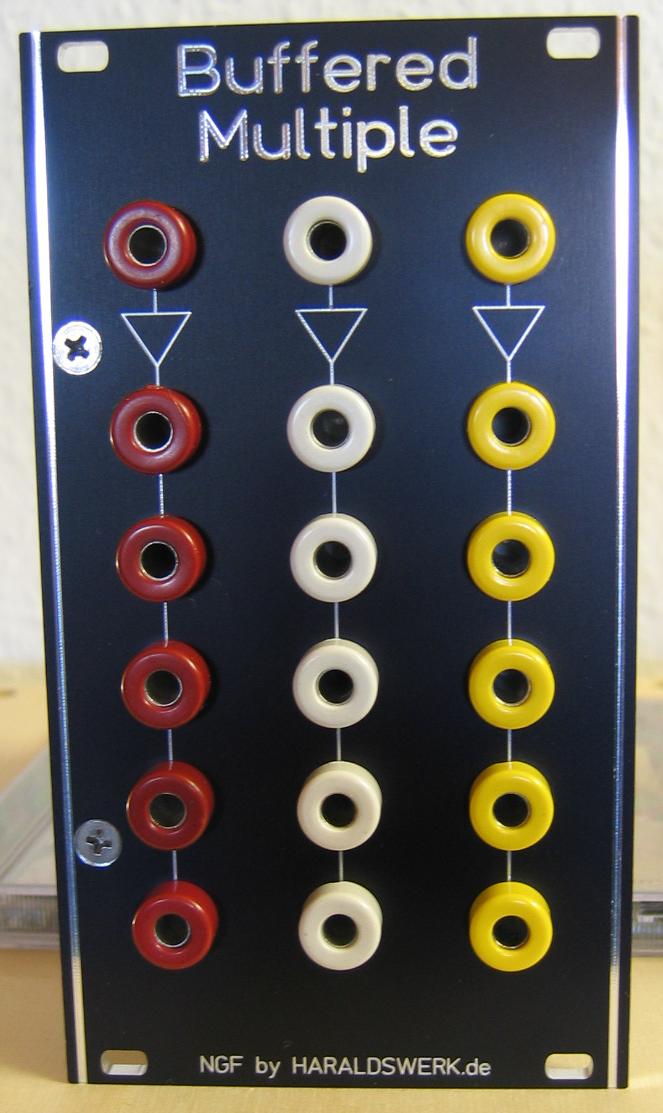

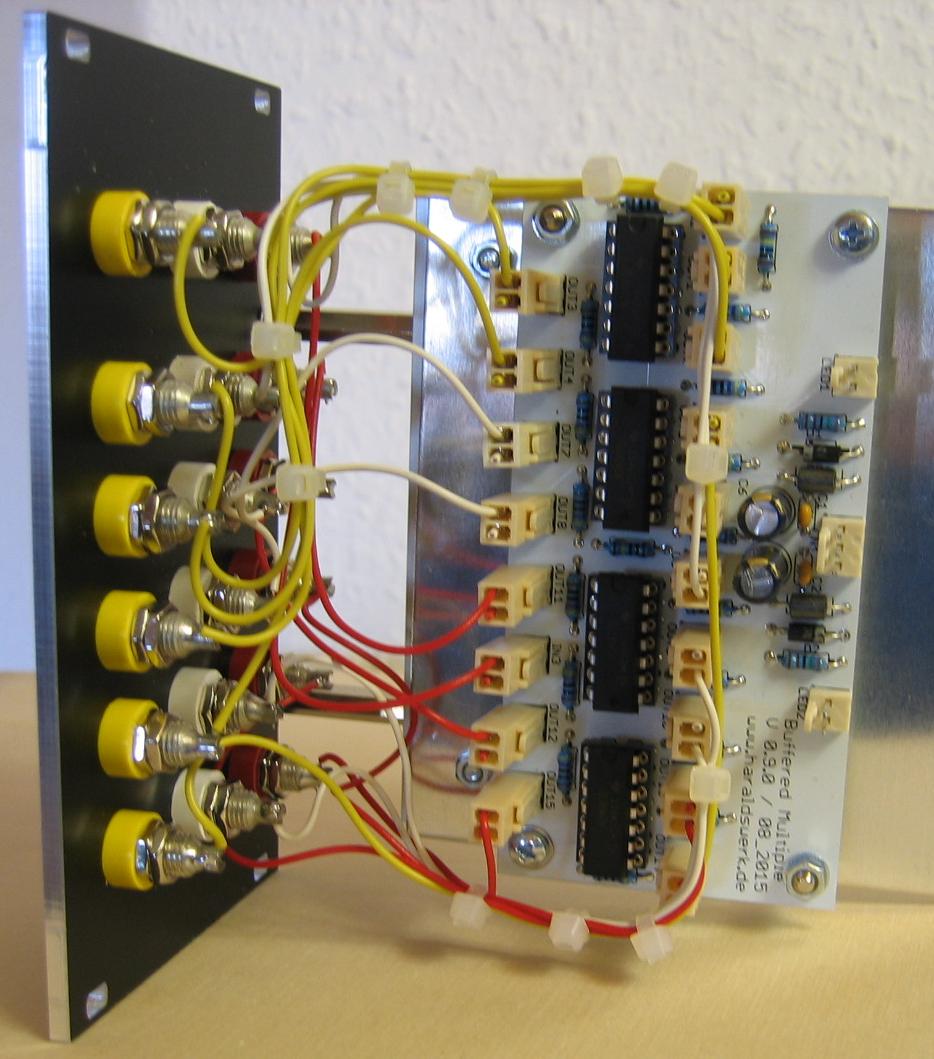

- Pictures
- Download docs
Implementation
Schematic

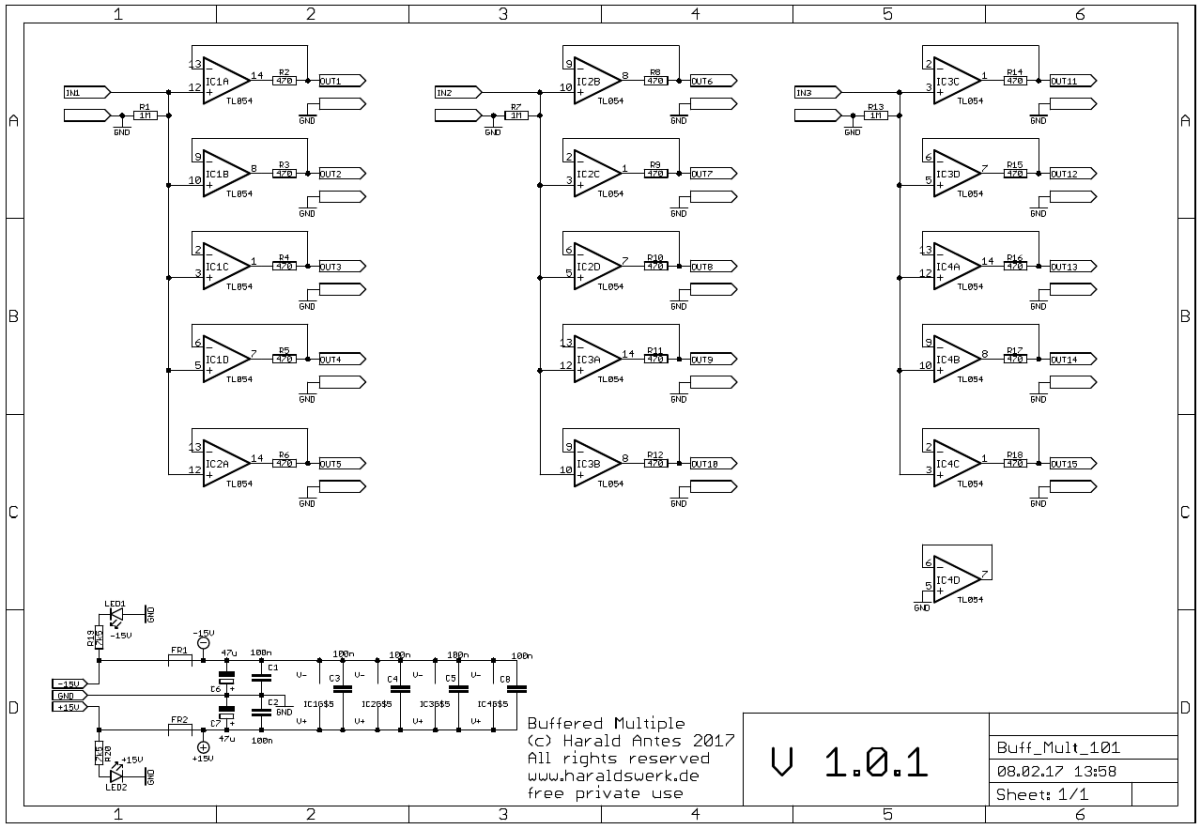

Buffered Multiple schematic
Description:
Straight forward design. The input signal is buffered with five independent buffers and split in five decoupled outputs.
Special parts
None
