Active Case Connector

Motivation

Active Case Connector front view.

When using different cases it is quite inconvenient to run lots off long patch cables between them. With this pair of modules you can reduce the amount of patch cables used between cases. This modules allows to use ribbon cables between cases. The connections are active buffered with OpAmps, so they are unidirectional. To connect cases in both directions (send and return) you need two pairs of this modules.



Specs and features


Implementation

Schematic

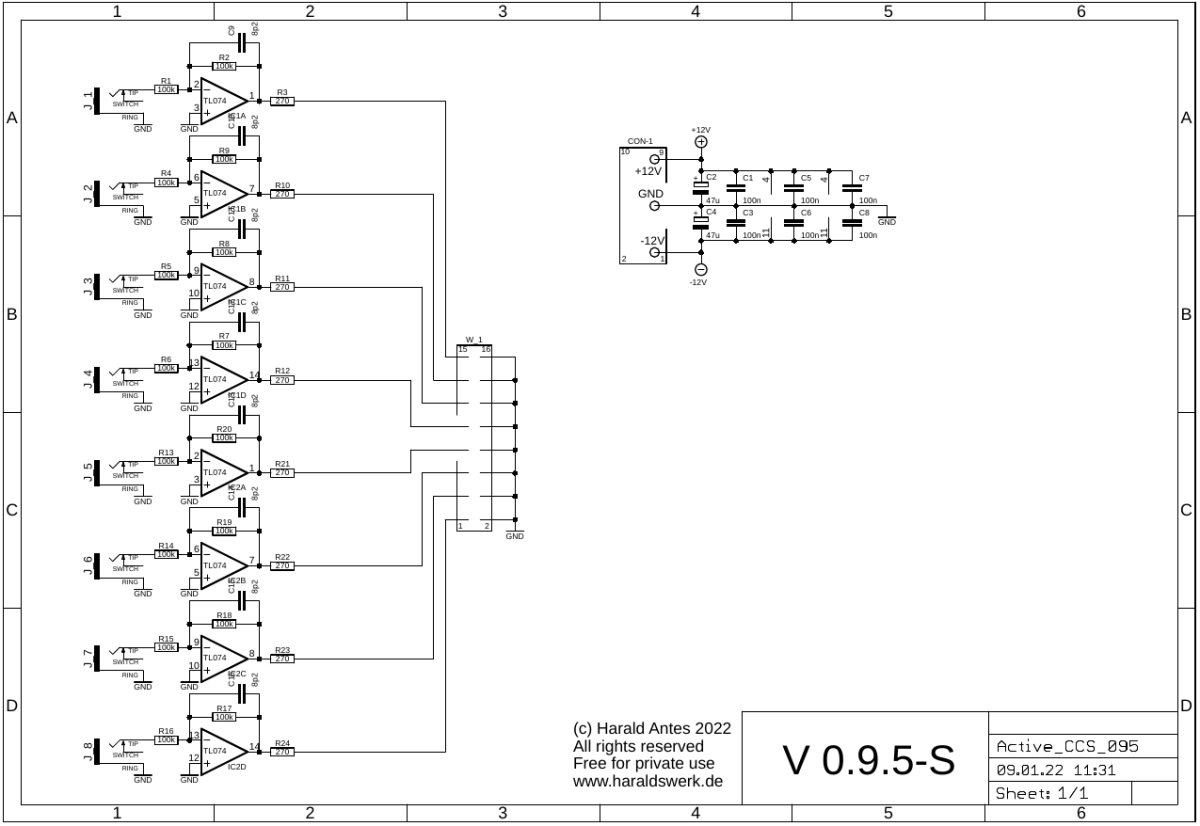

Active Case Connector schematic send

Active Case Connector: Schematic send

Active Case Connector schematic receive

Active Case Connector: Schematic receive

Description:

Nothing special. Just a lot off inverting OpAmp stages on the send and receive site.


Top

Calibration

  • None
Top

Building hints

  • None

Special parts

  • None

Download

Active Case Connector send control board documentation download
Active Case Connector send control board Gerber files download
Active Case Connector send *.fpd file
Active Case Connector receive control board documentation download
Active Case Connector receive control board Gerber files download
Active Case Connector receive *.fpd file

Active Case Connector front view

Active Case Connector: Front view


Active Case Connector populated control PCB

Active Case Connector: Populated PCB


Active Case Connector back view

Active Case Connector: Back view


Active Case Connector side view

Active Case Connector: Side view


Active Case Connector half back view

Active Case Connector: Half back view


Active Case Connector half side view

Active Case Connector: Half front view
