Motivation

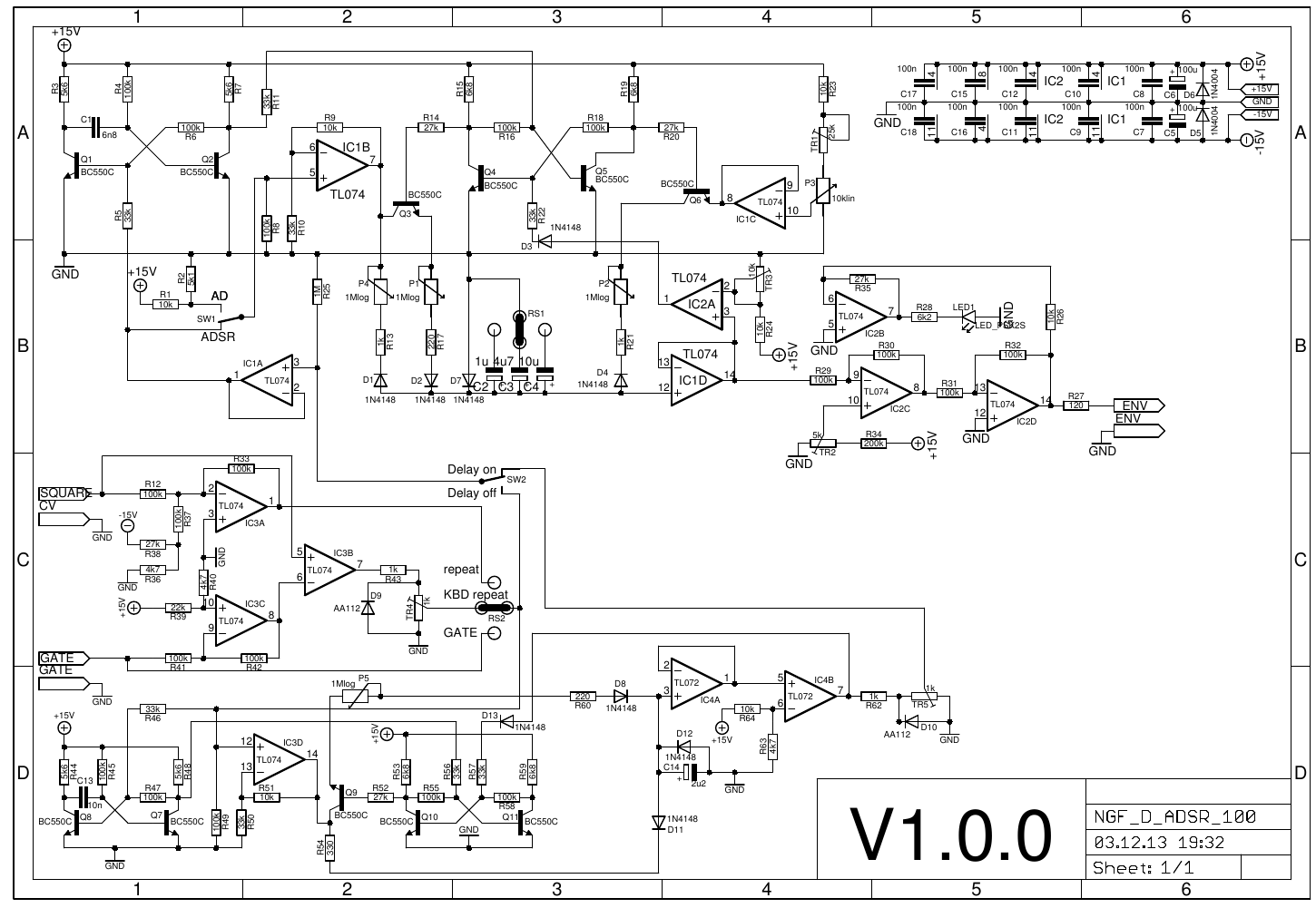

This is just an addition to my NGF ADSR. This addition follows the description in the second Elektor Formant book from Markus Aigner (pg. 66ff German Version). I only corrected one mistake in the schematic. R5 (original numbering) must be changed from 10k to 22k (R39 in my schematic).
Specs and features
- Same as in NGF ADSR except single shot
- Keyboard repeat
- Auto repeatt
- Delayed ADSR Curve

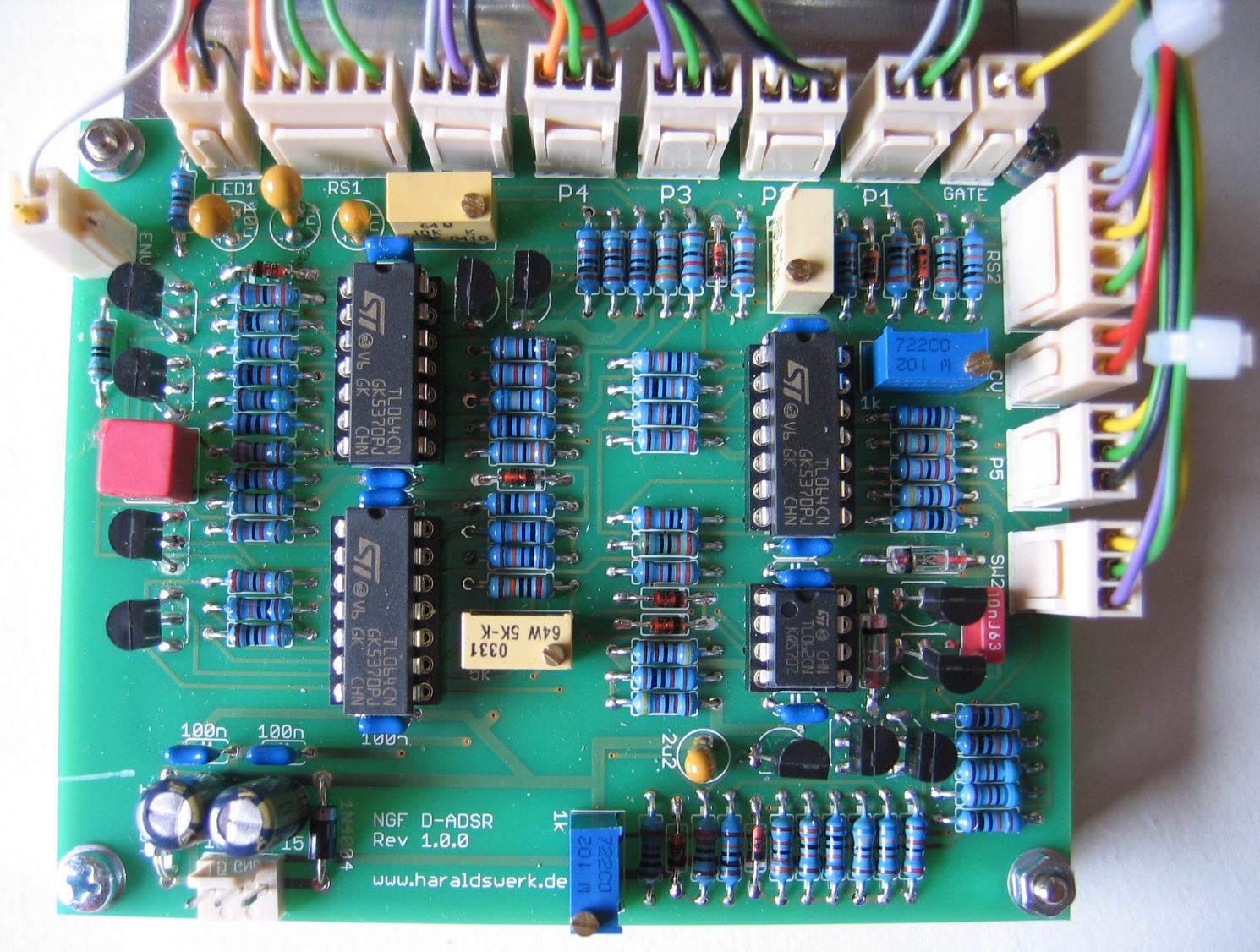

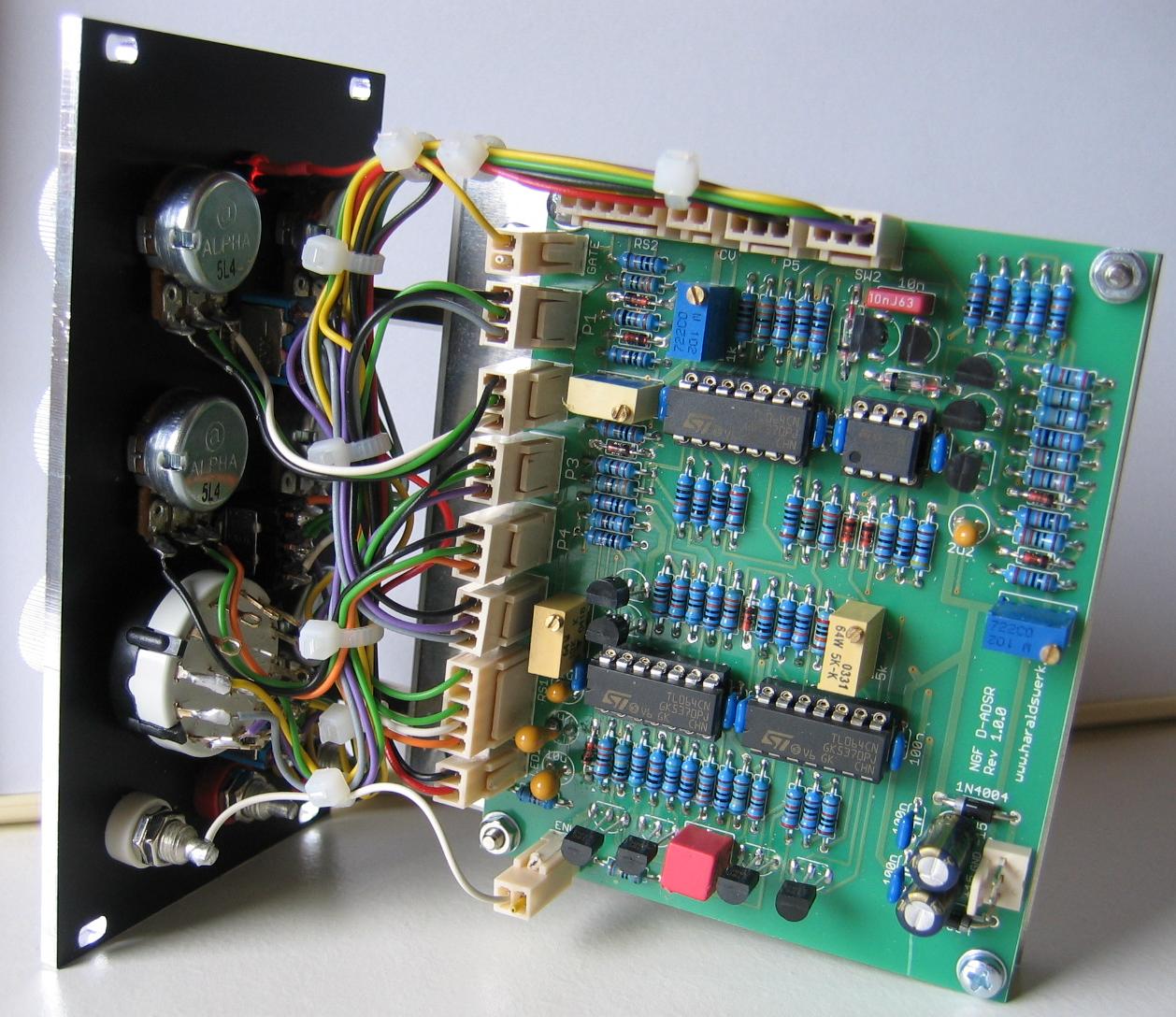

Implementation
Calibration
- Follow the book.
Special parts
None.
