Performance Mixer: Remote

Motivation

Performance Mixer Remote front view.

This is my take on a performance mixer with channels and groups. The panning and the volume for the channels is voltage controllable. You have two aux send per group, pre and post fader. The input gain is adjustable between 0..2 which can give nice distortion if wanted. You can add channels as needed.




Specs and features


Implementation

Schematic

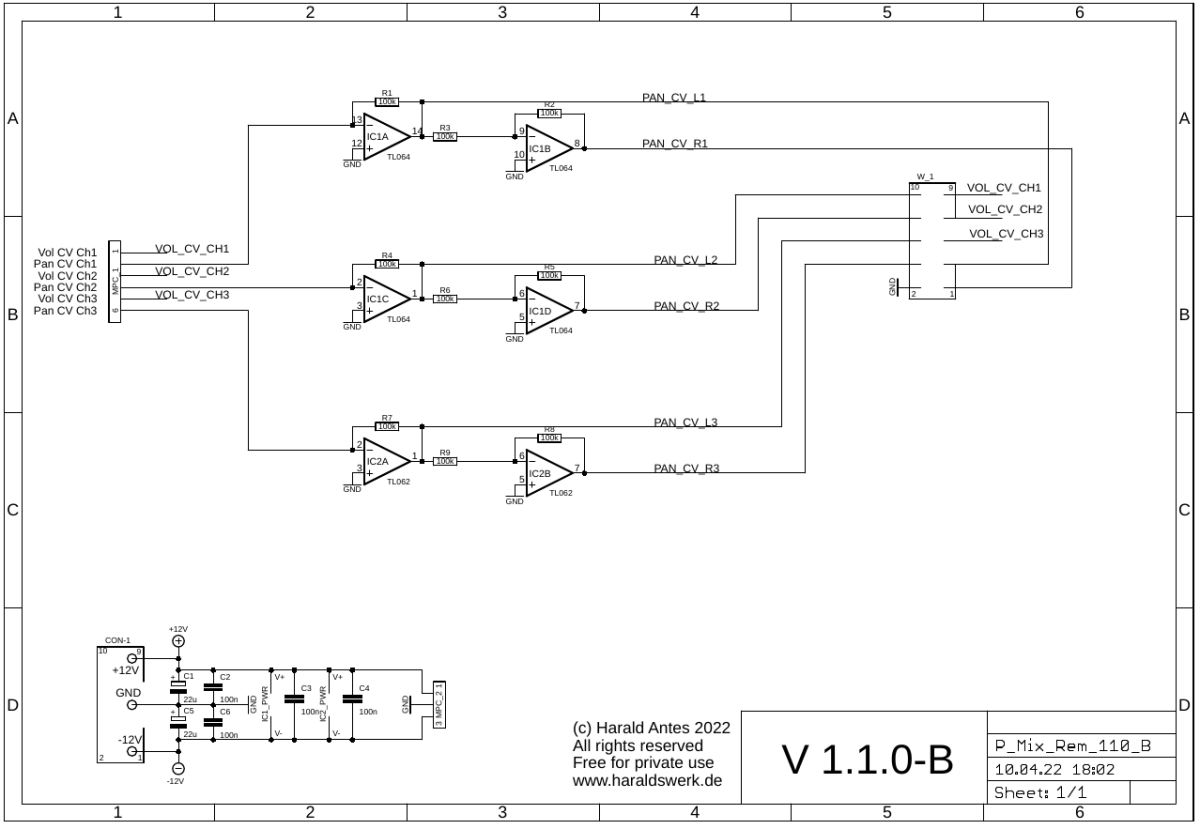

Performance Mixer Remote schematic control board

Performance Mixer Remote schematic: Control board

Performance Mixer Remote schematic main board

Performance Mixer Remote schematic: Main board

Description:

Nothing special about it.


Top

Calibration

None

Top

Building hints

  • None

Special parts

  • None

Download

Performance Mixer Remote control board documentation download
Performance Mixer Remote control board Gerber files download
Performance Mixer Remote main board documentation download
Performance Mixer Remote main board Gerber files download
Performance Mixer Remote *.fpd file

Performance Mixer Remote front view

Performance Mixer Remote: Front view


Performance Mixer Remote populated control PCB

Performance Mixer Remote: Populated control PCB


Performance Mixer Remote main PCB

Performance Mixer Remote: Populated main PCB


Performance Mixer Remote front half view

Performance Mixer Remote: Half front view


Performance Mixer Remote back view

Performance Mixer Remote: Back view


Performance Mixer Remote side view

Performance Mixer Remote: Side view


2022 May
