Motivation

NGF project 36dB VCF

I just wanted to know how a 36dB VCF sounds like. So i build one. This one is basically derived from my 24dB VCF LP/HP which i build for my Next Generation Formant Elektor project. I just added two more filter stages and the compensation circuitry from my Moog Ladder filter to compensate for the volume loss when Q is turned up. I have brought out all 6 filter stage outputs. Depending on your wiring you can use a switch to select between the outputs or/and bring all outputs out in parallel. The LP/HP switching is done with electronic switches on the PCB to avoid the problems (hum, noise...) of the wiring with a mechanical switch.


Specs and features


Implementation

Schematic

NGF 36dB VCF schematic page 1

NGF 36dB VCF LP/HP schematic page 1


Description:

Straight forward design. Six state variable filter cells are connected together in series, The output of each filter cell is brought out. There are a lot descriptions of those state variable filters out there. I feel no need to add another one. The resonance (Q) is voltage controlled with means of the OTA IC16OTA2 in the upper right corner (page 1). To compensate the volume loss when the resonance (Q) is turned up a second OTA (IC16OTA1) is used. This two OTA shares the same Iabc source. The amplification of this second OTA is increased when Q is going high and add volume to the output signal (See page 2 of the schematic).


NGF 36dB VCF schematic page 2

NGF 36dB VCF LP/HP schematic page 2


Top

Calibration

  • DC offset OTA

    • Refer to the procedure used for the 24dB VCF. Same procedure other with other part names.
  • Offset

    • Apply a square signal of about 500Hz to the input. Set the filter to lowpass mode.
    • Set potentiometer P5 (Cut off) to max (15V). Set trimmer TR4 to ground.
    • Turn TR4 slowly to -15V. You will see and hear that the edges of the square signal starts rounding.
    • Adjust TR4 so that there is no audible damping of the overtones. This adjustment is not critical. No need for excessive precision.
  • V/Octave

    • Easiest way: Measure the voltage at the basis off transistor Q1. If you change the voltage at the KOV input 1V, the voltage at the basis of the transistor Q1 should change about 17mV. Adjust with TR5
    • The other (precise) method needs an frequency generator and an oscilloscope. Not to mention some experienced knowledge. You need to measure the input and output signal amplitude. And do some math.
Top

Special parts

None

For best result match the OTA's for Gm

Known issues

Don't stuff R88. This will cut the output signal level to halve in every other output.

Move the wiring on RS1A (dB Switch) one step up.

Download

NGF 36dB VCF documentation download

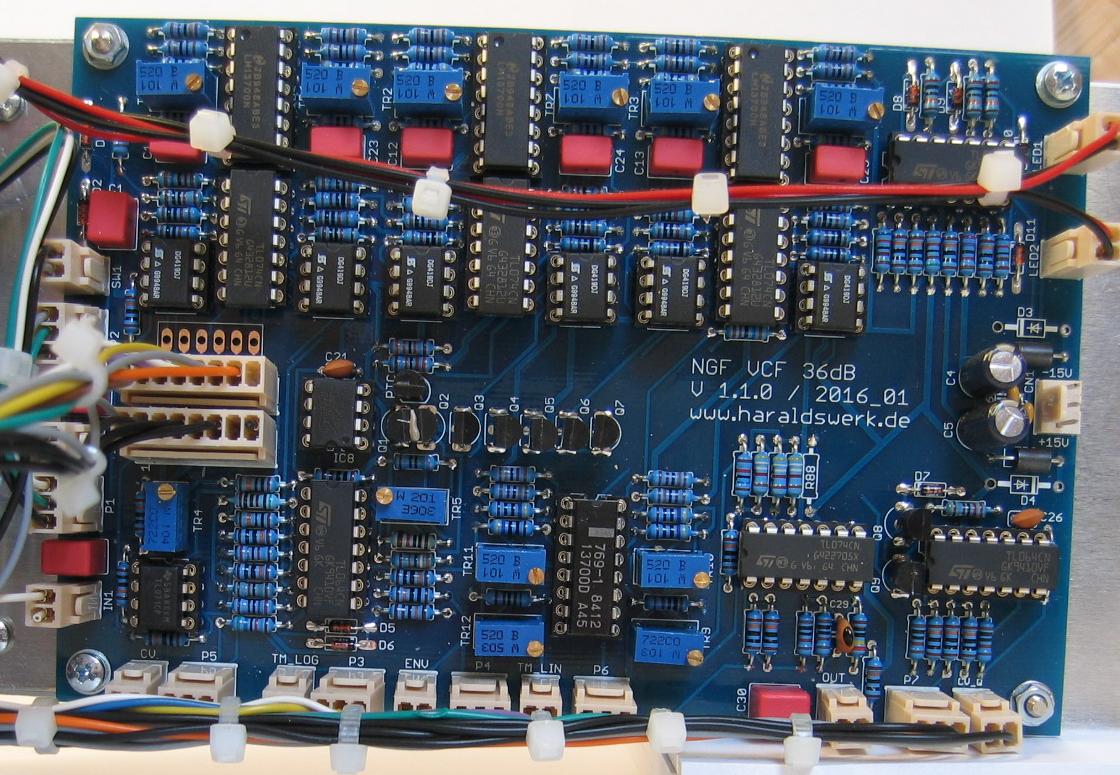

NGF 36dB VCF LP/HP: populated PCB

NGF 36dB VCF LP/HP: populated PCB

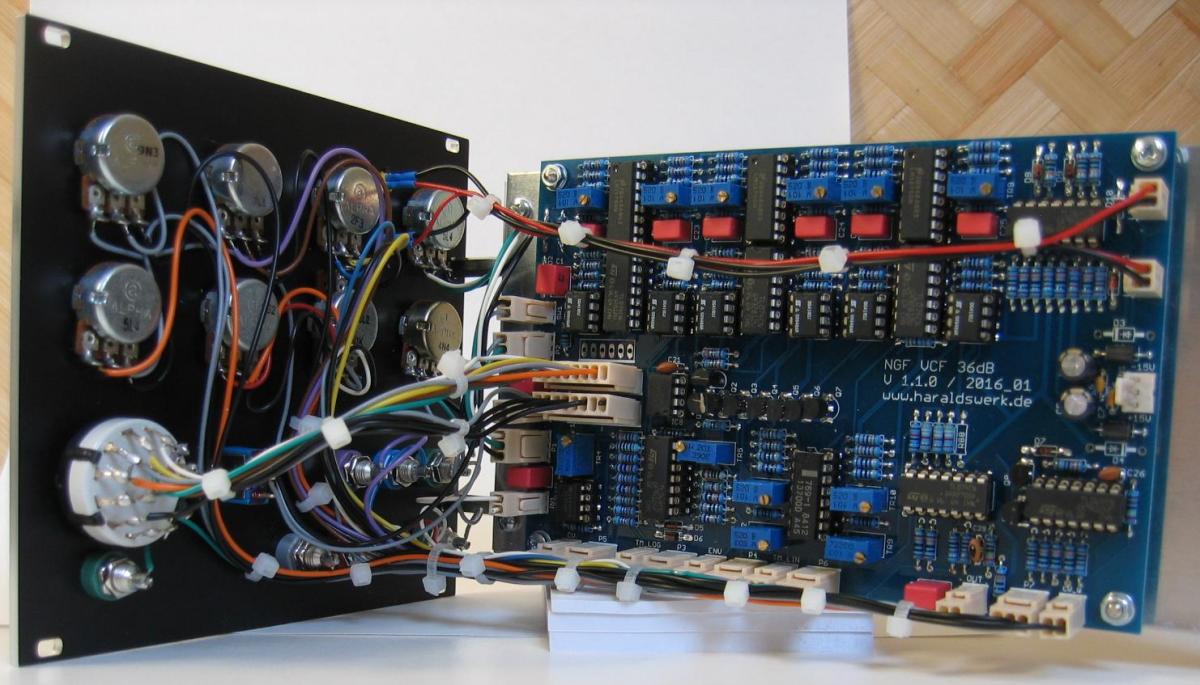

NGF 36dB VCF LP/HP: back view

NGF 36dB VCF LP/HP: back view

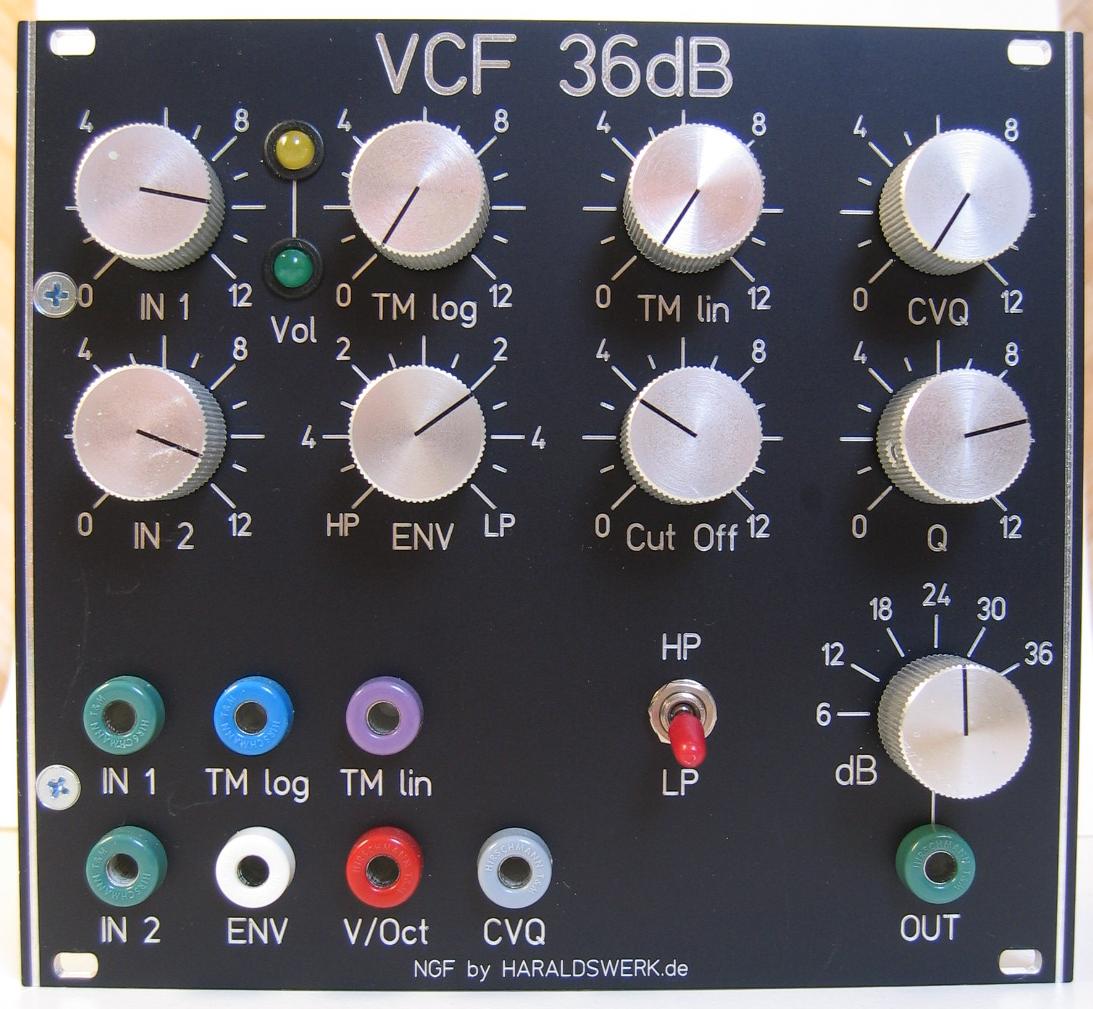

NGF 36dB VCF LP/HP: front view

NGF 36dB VCF LP/HP: front view


2017 November
